Pipe Cleaning Equipment

Pipe Cleaning Equipment

Pipe Cleaning Equipment provides constant flow rate pressure through the hydraulic system to clean the inner walls of various types of pipes, and performs cleanliness testing, residual liquid blowing, static pressure strength testing, etc. Hydraulic hoses are widely used in hydraulic systems.

Technical Parameters:

1, Flushing parameters:

Flushing pressure: Max.35MPa;

Maximum flow rate: max15m/S; (For larger flow rate range, please consult the factory)

Filtering precision: 5u;

Cleaning level: NAS level 6 or above. (optional cleanliness detector)

2, Static pressure parameters:

Output pressure range: 10MPa~100MPa;

Pressure holding accuracy: ±2%FS;

The equipment can automatically maintain and replenish pressure.

3, Other

Medium: water or hydraulic oil;

Medium temperature: normal temperature, optional heating;

System power supply: 380VAC, 50Hz;

System air supply: 10bar, 1m3/min.

Standard:

NAS 1638 | ISO 4406

Features:

Highly integrated, one-click operation, integrating cleaning, pressure testing, and blow-drying functions, suitable for process-oriented operations;

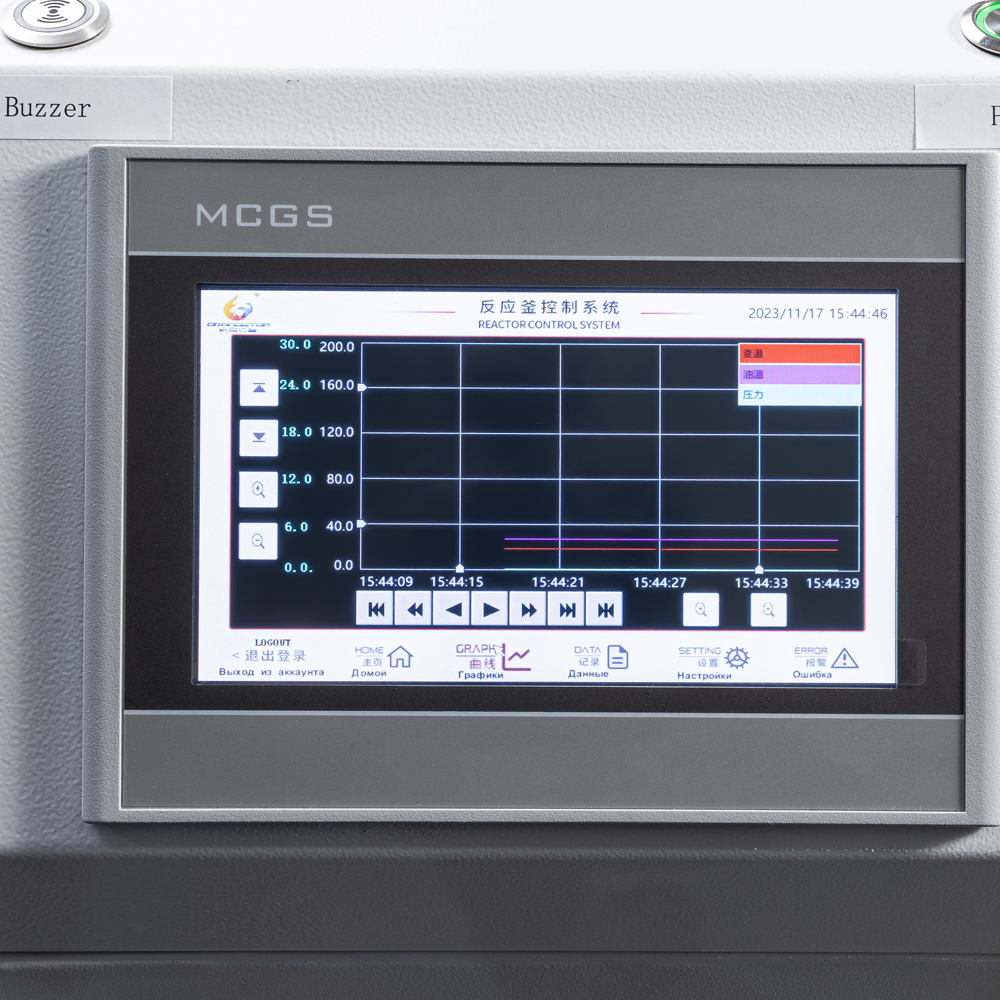

The corresponding curves are displayed in real time through the human-machine interface, and data storage and printing functions can be realized;

Use high-pressure energy storage to release the powerful impact force of water jets to impact the objects to be cleaned, peeling off and removing dirt, thereby achieving the purpose of cleaning;

Forced circulation filtration system, high-precision filter, optional online detector to detect cleanliness, more realistic reflection of flushing effect;

A medium heating system is optional. If you have special requirements for the medium, please consult the factory.
