2, DUAL Reaction Calorimeter is a reaction calorimeter used in process development and hazard assessment to investigate the thermal properties of a chemical reaction under defined operating conditions. The system allows optimization of process conditions for maximum product yield and minimizes safety hazards, based on the derived thermodynamic and kinetic information of the reaction.
DUAL Reaction Calorimeter supports both calibration-free power compensation calorimetry and classical heat flow calorimetry methods allowing the user to select the most appropriate method.

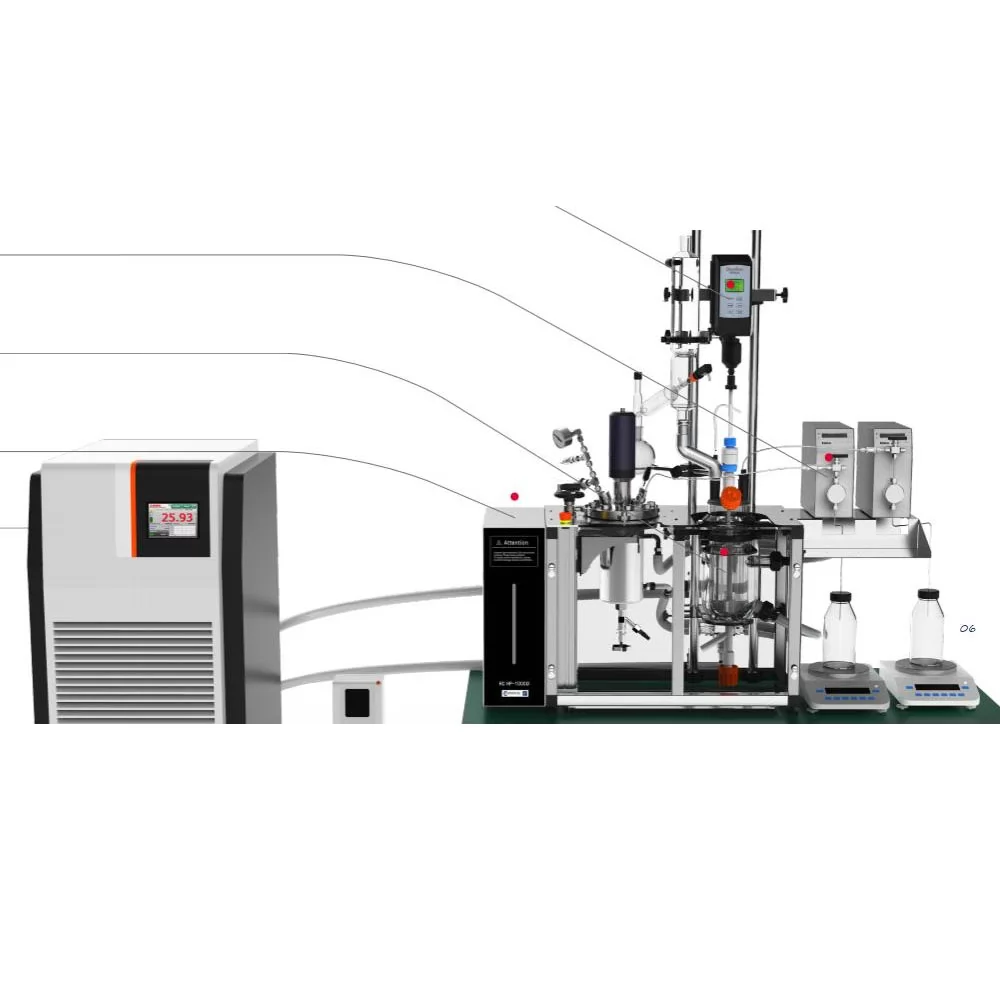

3, System Description
1）The system features a robust stand benchtop frame capable of supporting 1 reactor, a single ESSENTON.
2）ESSENTON-TORQUE Ultimate 100 stirrer motor, 4 blade down flow stirring impellers, a Huber Unistat Tango heater/chiller unit with appropriate heat transfer fluid and triple insulated oil pipes.
4, Liquid Feed
Glass reactors are supplied with one Prominent Gamma/ X metering pump, model GMXA1602 with a maximum feed rate of 2.3 L/h (38 mL/min) and 16 bar maximum back pressure, PVDF dosing head material construction and one A&D Balance 4 Kg maximum capacity and 0.1 g resolution.
5, Reactors
1）Available in borosilicate glass with volumes of 1 litres and include a bottom outlet valve.
2）Glass reactors are double jacketed. The outer vacuum jacket providing enhanced temperature control.
3）Glass reactors are paired with a borosilicate glass DN100 - 7 ports lid.
6, Operating Ranges:
1）The standard system temperature range option is -259℃ to 3000℃ for glass reactors.
2）The low temperature configuration option is -259℃ to 3000℃ for reactors.
3）The standard system pressure range is vacuum to atmospheric pressure for glass reactors.
7, Intelligent Software Control and Analysis
ESSENTON WinISO proprietary control software enables real-time graphing of all data streams and allows quick monitoring of reaction parameters as well as easy export of data in various formats for analysis in ESSENTON proprietary (i.e. IQ) and 3rd party (e.g. Microsoft Excel) data processing packages. The ESSENTON software can additionally be installed on multiple PCs for offline recipe planning and data analysis with IQ software.
8, Safety Features
Automatic user-configurable reaction control and safety shut-down procedures.
Technical Parameters
| model | DERC-250 mL to 5L |
| Calorimetric method | Heat flow method, power compensation method (optional), reflow method (optional) |
| Temperature control |
| Kettle body temperature range | -25℃～200℃ |
| Oil bath temperature range | -45℃～250℃ |
| Control method | Isothermal, Constant Temperature, Scanning |
| Temperature resolution | 1.0mK |
| Sample temperature control precision | ±0.1K |
| Silicone oil circulation speed | 35L/min～76L/min |
| Power Control |
| Driver voltage range | 0～50VDC |
| Driver maximum current | 3.0A |
| Heater maximum power | 120W |
| Atmospheric pressure glass reactor (optional) |
| Reactor volume | 1000mL, other volumes can be customized |
| Work Pressure | Atmospheric pressure |
| Reactor material | Glass , 316L stainless steel or Hastelloy |
| Medium pressure glass reactor (optional) |
| Reactor volume | 1000mL, other volumes can be customized |
| Work Pressure | 10MPa |
| Reactor material | Glass , 316L stainless steel or Hastelloy |
| Agitator |
| Maximum speed | 2000r/min, 3000r/min optional |
| Maximum Torque | 75N·cm, optional 300N·cm |
| Stirring paddle type | Anchor or paddle |
| Material of stirring paddle | PTFE, 316L or Hastelloy |
| Injection system |
| Injection channel | 1 liquid inlet, 1 solid inlet, 1 gas inlet; expandableExtended to 4 roads |
| Precision balance | Range 3100g, accuracy 0.01g |
| Injection pump | Medium pressure pump: electromagnetic diaphragm pump, maximum flow rate 2L/hHigh-pressure pump: precision plunger pump, maximum flow rate 2.4L/h |
